Model No. SWPI: 87 - 93

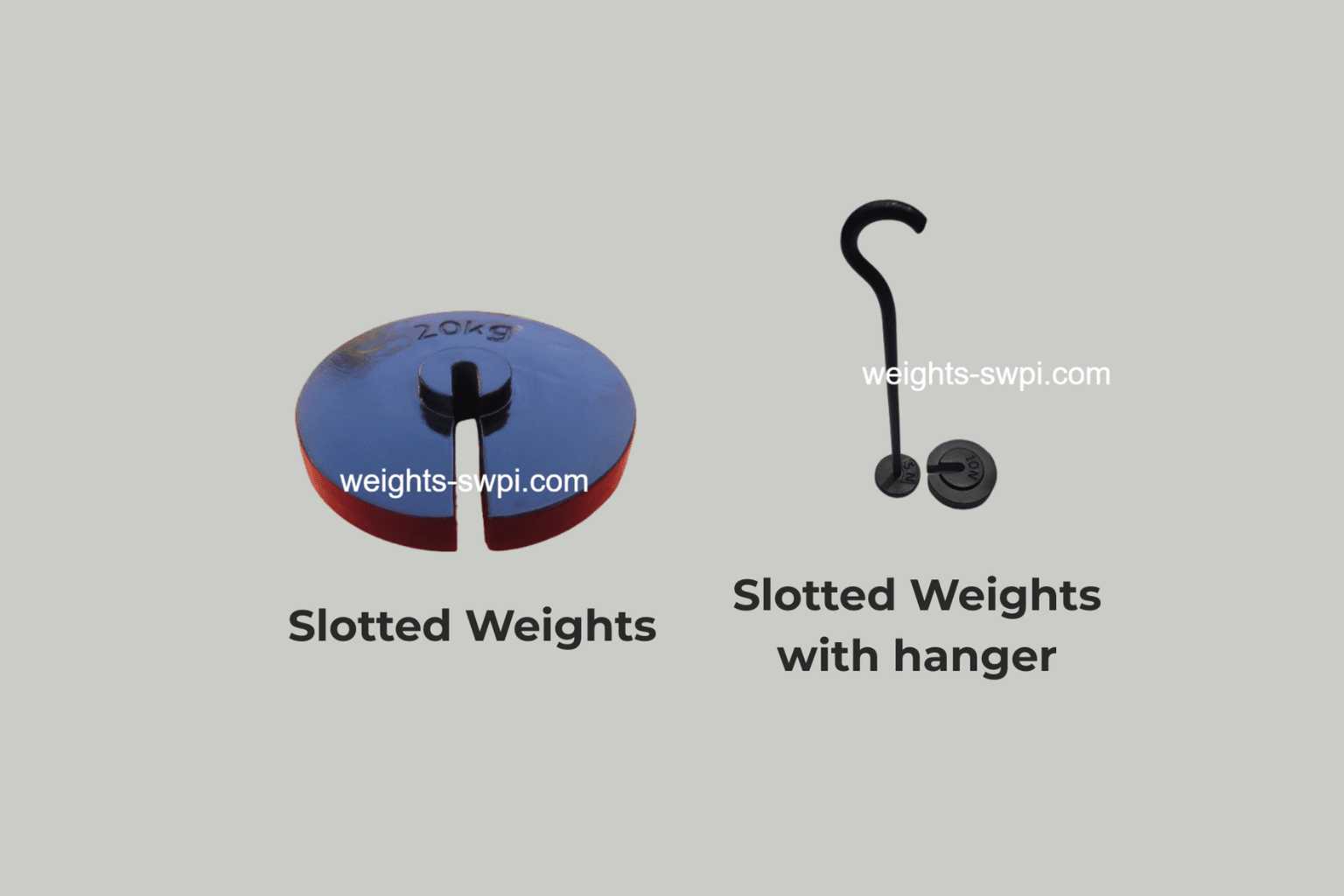

Slotted weights with hanger

Slotted weights: 100g to 20kg and 1 N to 200N

Hanger: 500g to 5kg and 5N to 50N

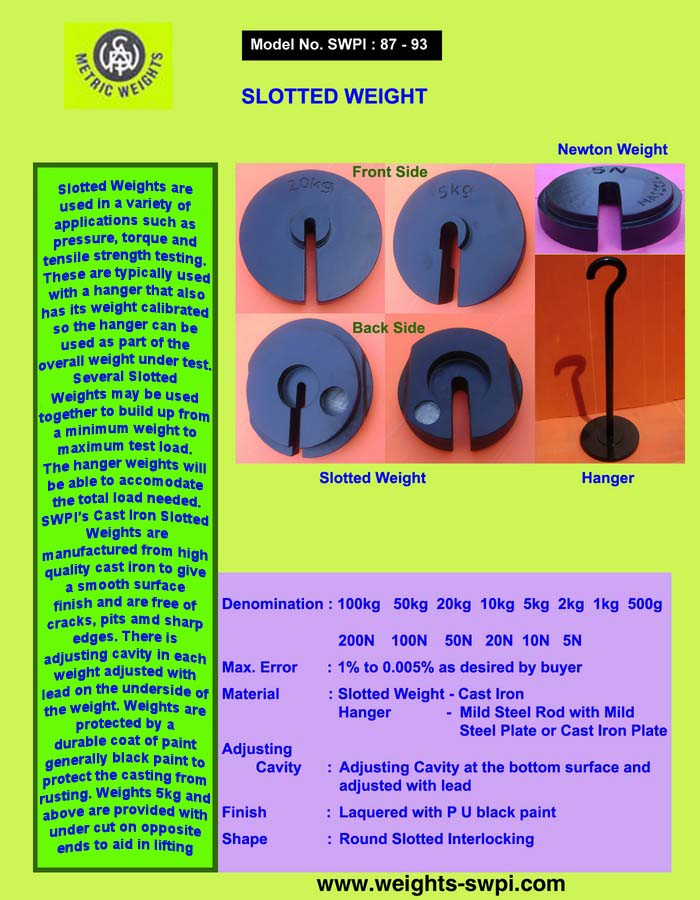

SWPI’s Model No. SWPI: 87 – 93 slotted weights with hanger are designed for a wide range of applications, including pressure, torque, and tensile strength testing. Manufactured from high-quality pig iron, these slotted weights have smooth surfaces, free from cracks, pits, or sharp edges. They include adjusting cavities sealed with lead to ensure precision, and each weight is clearly marked with its nominal value. The range covers 100 g to 20 kg and 1 N to 200 N, with a durable black paint coating to protect against rusting.

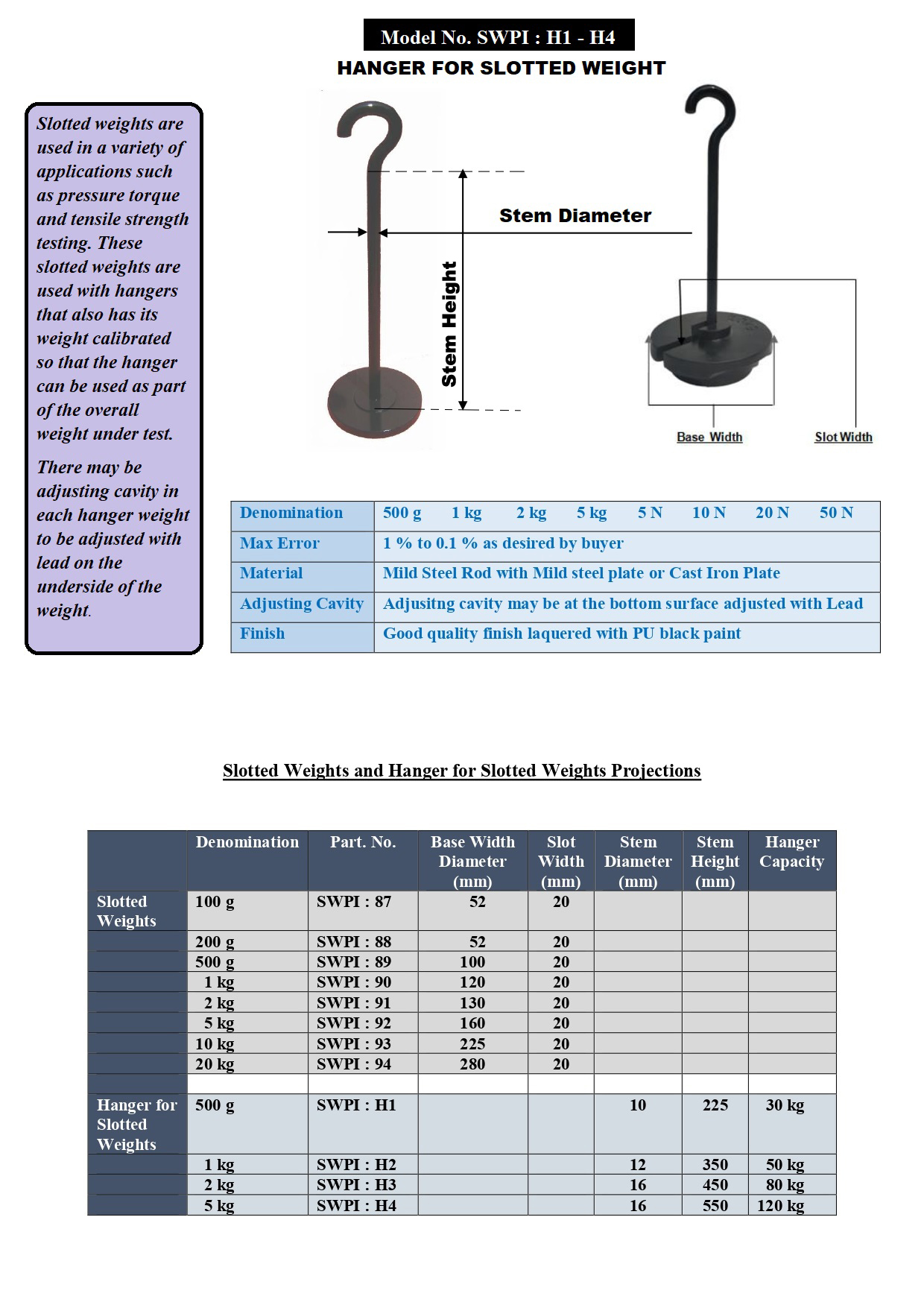

The hangers are made from mild steel and calibrated so they can be included as part of the overall test load. Available in weights ranging from 500 g to 5 kg and 5 N to 50 N, the hangers are designed to hold multiple slotted weights with a total capacity ranging from 10 kg to 100 kg. Together, the slotted weights and hangers provide flexibility for building up accurate test loads as required in industrial and laboratory settings.
